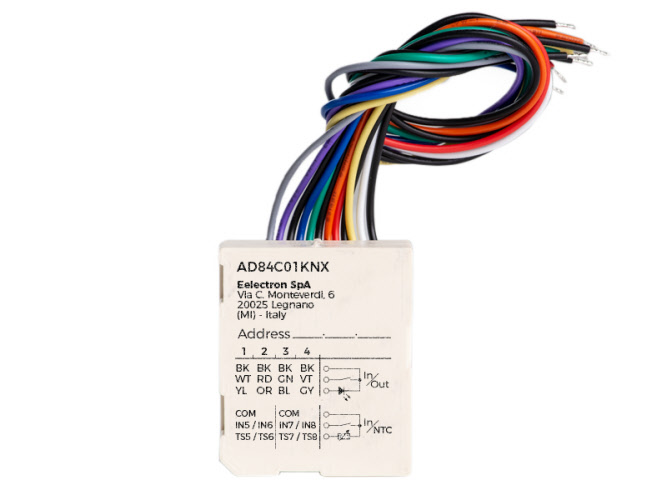

AD84C01KNX module includes 4 digital inputs to interface dry potential contacts and 4 analog or digital inputs for dry contacts or temperature sensors and 4 led outputs. Digital inputs can interface sensors, traditional buttons, etc; 4 low voltage/current outputs can drive LED for synoptics panels or switches. Inputs 5 รท 8, set as analog inputs, can enable up to 4 temperature probes (with On/Off threshold) and 4 thermostats to control heating and cooling equipments, valves, 2 and 4 pipes fan coils; etc.. The device is equipped with appropriate communication interface with the bus type TP1 (twisted pair) KNX European standard, according CEI EN 50090.
