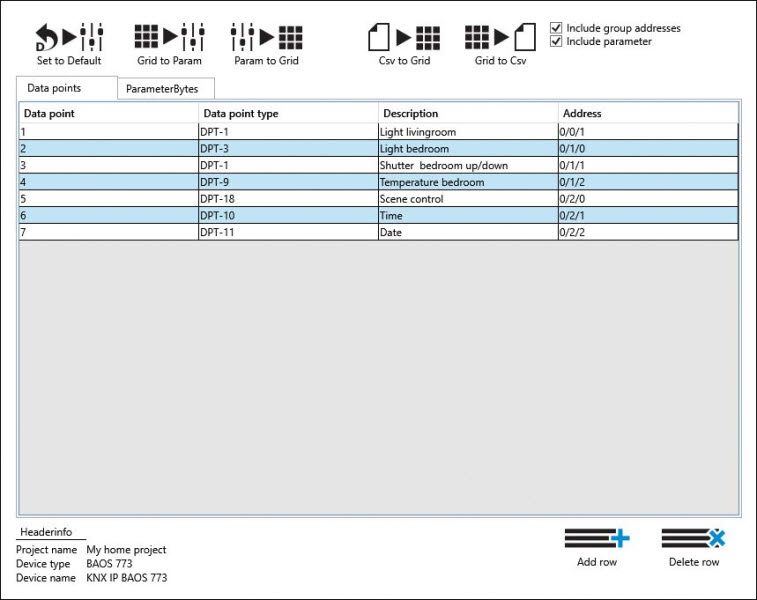

For all Weinzierl BAOS modules and devices, a generic ETS entry is available. It contains a list of all available data points. You can select a data point type and enter a name for each data point. In addition, a so-called DCA (Device Control App) is now available with the Weinzierl BAOS CSV Importer. The Weinzierl BAOS CSV Importer is available for all Weinzierl BAOS devices with a generic ETS product database and is an easy way to export the existing configuration of a generic BAOS database into a CSV file and import it into another project. Thus, a tedious configuration by hand is spared.
The Weinzierl BAOS CSV Importer is available as a free download in the online store of the KNX Association under Shop / ETS-Apps (Creating a user account is necessary). After adding to the shopping cart and check-out you will receive the download link for the Weinzierl BAOS CSV Importer within "My account / Products". You can also download the Weinzierl BAOS CSV Importer.
Installation instructions and usage documentation are also available.
Please note: the Weinzierl BAOS CSV Importer requires a commercial license of ETS 5.5 or higher.
Data sheet
Technical data
Mechanical data
Controls and indicators
KNX
Ethernet
-
10BaseT (10Mbit/s)
-
Supported internet protocols ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP and Auto IP
-
Up to 5 KNXnet/IP Tunelling connections simultaneously
-
KNX BAOS Binary Protocol V2.0
-
KNX BAOS Web Services (JSON)
Power supply
Connectors
