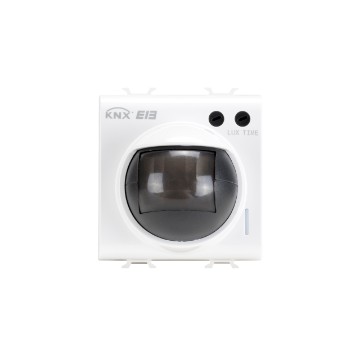

Movement sensor with detection conditioned by the light threshold value set. Adjustable lens. Operating range: 10m.
Vertical bearing angle: 30°. Horizontal bearing angle: 105°. Light threshold value adjustable by means of the frontal access trimmer or ETS parameter.
The cycle time can be set via ETS and modified (± 50%) via the front access trimmer.
Front green LED signals movement detection and command entry. To be configured with ETS software.
Allows you to send timed commands to the movement detector.
The device is able to manage a safety pause upon the deactivation of the controlled load. For installation indoors.
Equipped with coupling terminal for connection to BUS (with protection lid).
