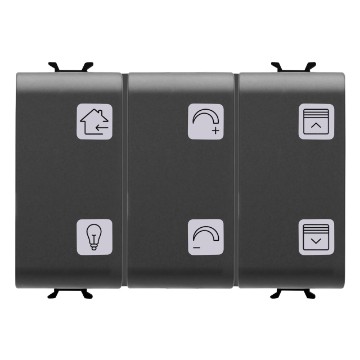

KNX module with 6 independent channels, with replaceable button keys and built-in temperature sensor. Each channel is associated with an amber/green night-time locating LED or a status display LED for the commanded load. To be configured with ETS software. The package includes 3 replaceable button keys (GW1x553) and 10 lenses with illuminated symbols (2 x GW10502A, 1 x GW10509A, 1 x GW10510A, 1 x GW10513A, 1 x GW10514A, 1 x GW10519A, 1 x GW10520A, 1 x GW10529A, 1 x GW10530A). You can still customize the module with other type of replaceable button keys (suited for 1 or 2 lenses, with 2 diffusers, 1- or 2-module) or with other lenses in the catalogue.
Allows you to send ON-OFF commands with fronts management, switching commands and sequences, brief/prolonged contact closure management, timed commands, priority commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation).
Equipped with coupling terminal for connection to BUS (with protection lid).
