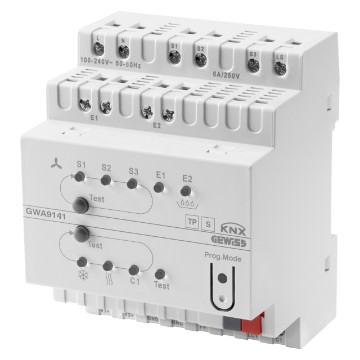

Actuator for the command of fan coils with 0-10V proportional heating/cooling valves and up to 3 fan levels (or with 0-10V proportional output) in 2- and 4-pipe systems. Equipped with an additional progrmmable relay (eg: to control a heating/cooling battery or as a switching output) and two potential-free inputs for windows contact or temperature probe sensor (es: GWA9145) and condensate monitoring. The device has frontal Test buttons (for a simple check of fan levels and heating/cooling switching during the setup steps) and 9 signalling leds for the operation status. Regulation is via an external control variable or the integrated ambient thermostat (in the latter case it is necessary to add the temperature probe sensor). To be configured via ETS software.
Equipped with coupling terminal for connection to BUS.
