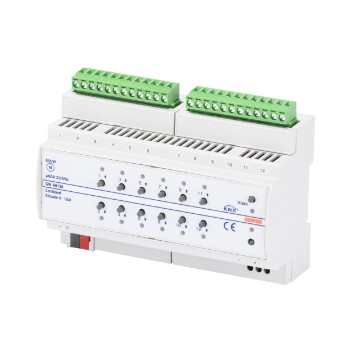

12-channel actuator with potential-free output contacts (NO) for activating 12 loads (on/off switching mode) or 6 shutters/venetian blinds with 230Vac motors. Each single pair of channels can be separately configured for switching loads or roller shutter command. Suitable for commanding incandescent lamps (230Vac): 1500W, halogen lamps (230Vac): 1500W, loads controlled from toroidal transformers: 1200W, loads controlled from electronic transformers: 1000W, energy saving lamps (compact fluorescent): 25x23W, LED lamps (230Vac): 25x10W, motors: 800W. Max switchover currents 8A (AC1), 8AX (140μF ref. EN 60669-1) fluorescent loads with maximum surge current 300A (150μs). Equipped with front push-buttons for manual activation, and signalling LED for closure of output contact. To be configured with ETS software.
Execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, block commands, safety functions, logic functions, counters, output status signal, commands of movement/adjustment/stopping, alarm signalling.
Equipped with coupling terminal for connection to BUS (with protection lid). Possibility to activate the loads manually, even without the BUS voltage (230Vac auxiliary power supply required).
