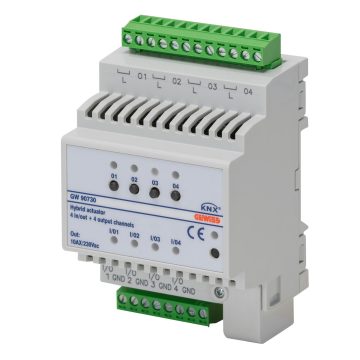

The module has 4 relay 10A output channels and 4 universal input channels that can be configured as inputs for push-buttons or conventional potential-free contacts, analogue inputs (0..20mA, 4..20mA, 0..10V, 0..1V), digital inputs for measurement devices with S0 interface (max 1), inputs for NTC probe sensors (max 2) that can be used for controlling the same number of thermoregulation areas. The 4 universal input channels can also be configured as PWM outputs for LEDs (3.3V) for signalling the status of the loads. The 4 relay output channels are suitable for commanding incandescent lamps (230V AC): 1500W, halogen lamps (230V AC): 1500W, loads controlled from electronic transformers: 600 VA, uncompensated fluorescent lamps 400VA, energy saving lamps (compact fluorescent): 8x23W. Max switchover current 10 A (cos.fi 1). Use a support relay for the compensated fluorescent lamps and for all loads that are not indicated. The device has front push-buttons for the local command of the relay outputs, 4 green LEDs for signalling output contact closure, and 4 amber LEDs for signalling the status of the inputs. To be configured with ETS software.
The input channels are used for sending ON-OFF commands with fronts management, switching commands and sequences, brief / prolonged contact closure management, timed commands, priority commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button), scenes (storage and activation), impulse count. The output channels are used for the execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, and scene management commands.
Equipped with coupling terminal for connection to BUS (with protection lid).
