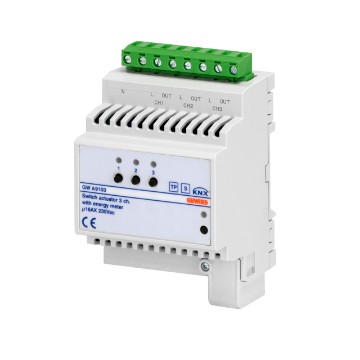

3-channel actuator for activating loads via potential-free output contacts (NO), with the measure of the power and the energy consumed by each channel. Suitable for commanding incandescent lamps (230Vac): 3000W, halogen lamps (230Vac): 3000W, loads controlled from toroidal transformers: 3000W, loads controlled from electronic transformers: 2000W, energy saving lamps (compact fluorescent): 80x23W. Max switchover current 16 A (AC1), 16 AX (140 μF ref. EN 60669-1) fluorescent loads with maximum surge current 400A (200 μs). Equipped with front push-buttons for local implementation and signalling led for closure of output contact. To be configured with ETS software.
Execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions. Allows the measurement and the sending on the KNX bus of the active energy (exported and imported), instantaneous active and reactive power (exported and imported), voltage, current, power factor and frequency, with the possibility to disconnect the load for each channel independently. Suitable for single-phase systems.
Equipped with coupling terminal for connection to bus (with protection lid).
