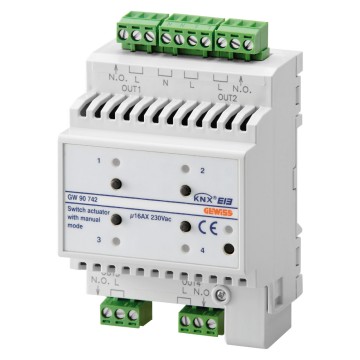

4-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230 Vac): 3000 W, halogen lamps (230 V ac): 3000 W, loads controlled from toroidal transformers: 3000 W, loads controlled from electronic transformers: 2000 W, energy saving lamps (compact fluorescent): 80x23W. Max switchover current 16A (AC1), 16AX (140µF ref. EN 60669-1) fluorescent loads with maximum surge current 400A (200µs). Equipped with front push-buttons for manual activation, and signalling LED for closure of output contact. To be configured with ETS software.
Execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
Equipped with coupling terminal for connection to BUS (with protection lid). Possibility to activate the loads manually, even without the BUS voltage (230Vac auxiliary power supply required).
