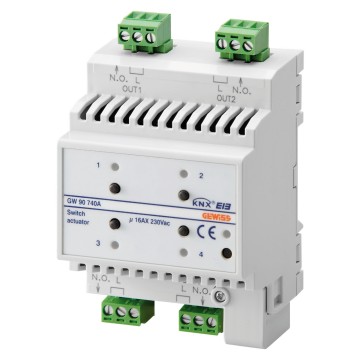

4-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230 Vac): 3000 W, halogen lamps (230 V ac): 3000 W, loads controlled from toroidal transformers: 3000 W, loads controlled from electronic transformers: 2000 W, energy saving lamps (compact fluorescent): 80x23W. Max switchover current 16A (AC1), 16AX (140µF ref EN 60669-1) fluorescent loads with maximum surge current 400A (200µs). Equipped with front push-buttons for local implementation, and signalling LED for closure of output contact. To be configured with ETS software.
Execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
Equipped with coupling terminal for connection to BUS (with protection lid).
