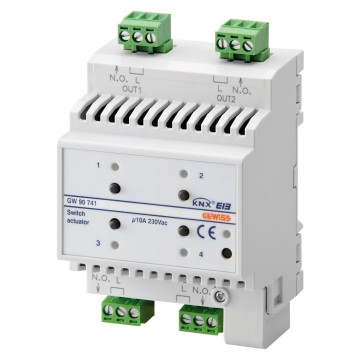

4-channel actuator for activating loads via potential-free output contacts (NO). Suitable for commanding incandescent lamps (230 V ac): 1500 W, halogen lamps (230 V ac): 1500 W, loads controlled from electronic transformers: 600 VA, uncompensated fluorescent lamps: 400 VA, energy saving lamps (compact fluorescent): 8x23 W. Max switchover current 10 A (cos.fi 1). Use a support relay for the compensated fluorescent lamps and for all loads that are not indicated. Equipped with front push-buttons for local implementation, and signalling LED for closure of output contact. To be configured with ETS software.
Execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions..
Equipped with coupling terminal for connection to BUS (with protection lid).
