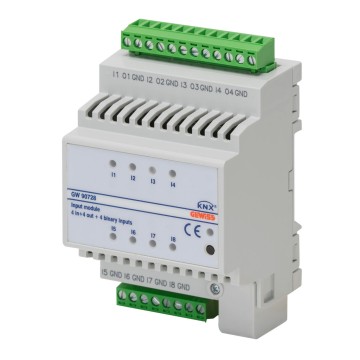

The module has 4 digital inputs for push-buttons or conventional potential-free contacts and 4 universal input channels. The universal input channels can be configured as inputs for push-buttons or conventional potential-free contacts, analogue inputs (0..20mA, 4..20mA, 0..10V, 0..1V), digital inputs for measurement devices with S0 interface, inputs for NTC probe sensors that can be used for controlling the same number of thermoregulation areas. The module is provided also with 4 PWM outputs for LEDs (3.3V) for signalling the status of the loads. The device has 8 amber LEDs for signalling the status of the inputs. To be configured with ETS software.
The input channels are used for sending ON-OFF commands with fronts management, switching commands and sequences, brief / prolonged contact closure management, timed commands, priority commands, thermoregulation commands, commands for managing roller shutters (single or double push-button), dimmers (single or double push-button), scenes (storage and activation), impulse count.
Equipped with coupling terminal for connection to BUS (with protection lid).
