Power supply 160 mA S KNX

Theben
Just
    Delivery time:5-7 Days
Add to cart
  • Description

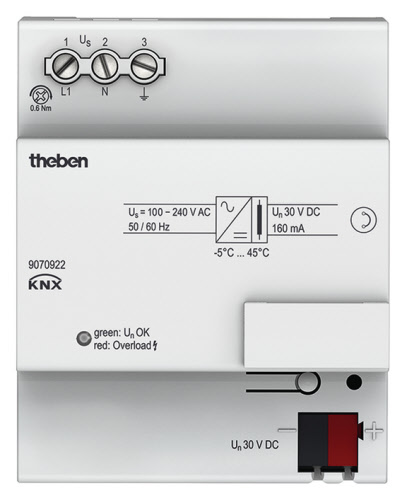

Power supply 160 mA S KNX.

Description

    160 mA supply voltage

  • Power-supplying and monitoring of the KNX system voltage
  • Reset key for 20 sec. bus reset
  • Continuous short-circuit protection

Technical data

Operating voltage KNX Bus voltage, ≤12 mA
Operating voltage 100 – 240 V AC
Frequency 50 – 60 Hz
Stand-by consumption ≤0,7 W
Width 4 modules
Installation type DIN rail
Type of connection KNX bus terminal
KNX output 1 line with integrated throttle drive
Nominal voltage KNX 30 V DC, ± 2 V, SELV
Nominal current KNX 160 mA
Uninterrupted short-circuit current max.0,5 A
Mains failure bridging time min.200 ms
Ambient temperature -5 °C … +45 °C
Protection class II according to EN 60 730-1
Type of protection IP 20
