theServa S110

Description

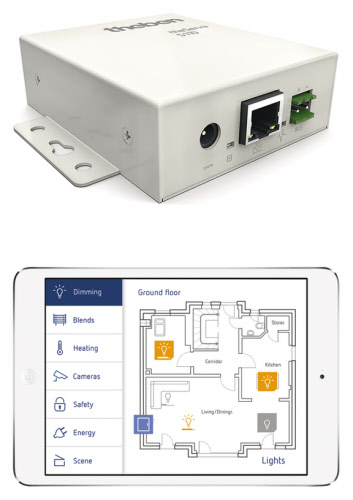

  • theServa S110 is a high-performance KNX visualisation solution for lighting, awning and climate control via smartphone and tablet
  • The intuitive app user interface is able to control devices, and also:
  • Display status and alarm messages and measured values as text or via predefined symbols
  • Show energy consumption in graphic format
  • Mix colours of RGB LEDs using a colour wheel
  • Integrate images from IP cameras
  • Control audio/video devices from almost all leading manufacturers via IR transmitter from IRTrans
  • Display current weather data and forecasts from the Internet or via KNX weather stations
  • Program time switch and calendar functions, as well as scenes
  • In addition to the functions above, theServa offers a complete range of other functions that run in the background, including:
  • Presence simulation
  • Solar position calculation with sunrise and sunset
  • Logic, multiplexer and filter functions
  • Linear combination
  • Calculation of complex mathematical functions
  • Notification via email and push notifications (iOS only)
  • Load management for automatic shutdown of consumers
  • Configuration is via theServa configurator
  • A theServa S110 miniserver from Theben is required to operate the software
  • Hardware
  • Fanless miniserver designed for continuous operation
  • Mass storage on compact flash industrial grade
  • Integrated KNX interface with pluggable screw terminals
  • Integrated Ethernet port
  • Operating system: linux embedded

Technical data

Operating voltage KNX Bus voltage, ≤5 mA
Operating voltage 110 – 240 V AC
Frequency 50 – 60 Hz
Stand-by consumption <1 W
Ambient temperature +0 °C … +50 °C
Type of protection IP 20
