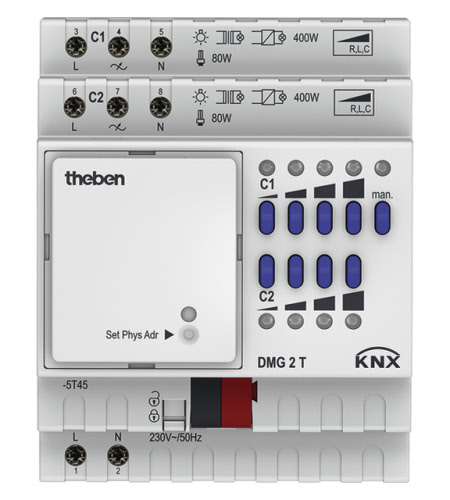

DMG 2 T KNX

Theben
Only
    Delivery time:5-7 Days
Add to cart
  • Description

DMG 2 T KNX

  •

Technical data

  • Operating voltage KNX Bus voltage, ≤4 mA
    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0,9 W
    Capacity loss max. 4,5 W
    Width 4 modules
    Installation type DIN rail
    Type of connection Terminal screws | Bus connection: KNX bus terminal
    Max. cable cross section Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
    Number of channels 2
    Lamp types Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED
    Switching capacity per channel 400 W
    Switching capacity in parallel operation 800 W
    LED lamp Trailing edge (RC-mode): 400 W
    Energy saving lamps Trailing edge (RC-mode): 400 W
    Switching capacity min. 5 W
    Max. cable length 100 m
    Ambient temperature -5 °C … +45 °C
    Type of protection IP 20
    Protection class II according to EN 60 669
