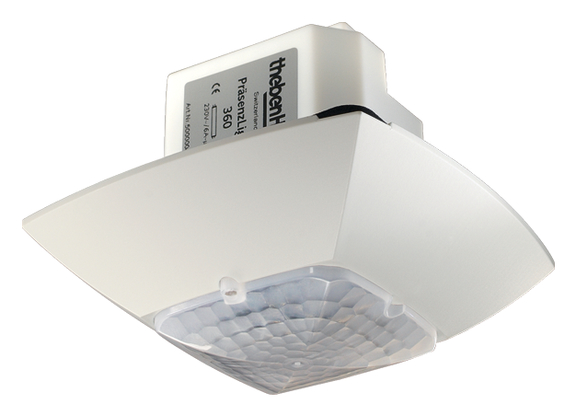

PresenceLight 360B-KNX WH





  • Technical data

    Operating voltage KNX Bus voltage, ca. 13 mA
    Installation height 2 – 3 m
    Setting range brightness 5 – 2000 lx
    Detection angle 360°
    Type of connection KNX bus terminal
    Installation type Ceiling installation
    Light switch-off delay  30 s-60 min
    Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
    Light measurement Mixed light measurement
    Stand-by time light 30 s – 60 min , on, inactive
    Presence switch-off delay 10 s-120 min
    Switch-on delay presence 10 s – 30 min / inactive
    Ambient temperature -10 °C … +50 °C
    Colour Pure white (similar to RAL 9010)
    Type of protection IP 54

Description

  • Presence detector (PIR)
  • Type of protection IP 54
  • Mixed light measurement
  • Square detection area
  • Ceiling mounted
  • The square detection area allows accurate and simple planning
  • Presence and brightness-dependent control for lighting and HVAC systems
  • Choice of fully or semi-automatic lighting control
  • Connection option for sensors or switches for manual switching with automatic recognition
  • Adjustable sensitivity
  • Can be configured remotely
  • Installation with mechanical stop
  • Lighting control with brightness threshold value and self-learning switch-off delay
  • Pulse function for staircase time switch
  • Presence output with switch-on and switch-off delay
  • Room monitoring with selective movement detection
  • Parameters can be selected for subsequent changes
  • Test operation mode checks the detection area and brightness threshold
  • Management remote control SendoPro 868-A (optional)
  • theSenda S user remote control (optional)
