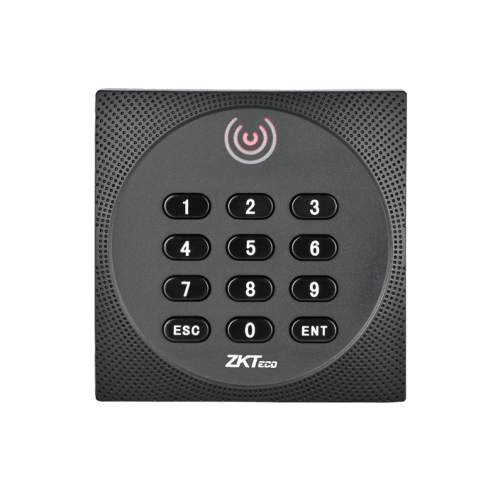

KR600-M

Only
    Delivery time:5-7 Days
Add to cart
  • Description

KR600 Series

Wiegand Card Readers

• Read range of up to 10cm for proximity card and 5cm for Mifare card

• External LED control

• External Buzzer Control

• Indoor/Outdoor operation

• Solid Epoxy potted

• Waterproof IP64 or IP65

• Reverse Polarity Protection

Technical Specifications

Read Range
• KRxxx-E: Up to 10CM  • KRxxx-M: Up to 5CM
Reading Time
• ≤300ms
Input Port
• External LED Control  • External Buzzer Control
Output Port
• KRxxx-E: 26bit Wiegand (Default)  • KRxxx-M: 34bit Wiegand (Default)
Power/Current
• DC 6-14V / Max.70mA
LED
• Red and Green LEDs
Operating Temperature
• -10°C to +65°C
Material
• ABS+PC with texture
Operating Humidity
• 10% to 90% relative humidity  • non-condensing
Beeper
• Yes
Index of Protection
• KR600-E/M: IP65  • KR601-E/M: IP65  • KR602-E/M: IP64
