>RS-485/Wiegand protocol
>Default IC (Mifare) card(“-D” means ID EM card)
>Support card, password

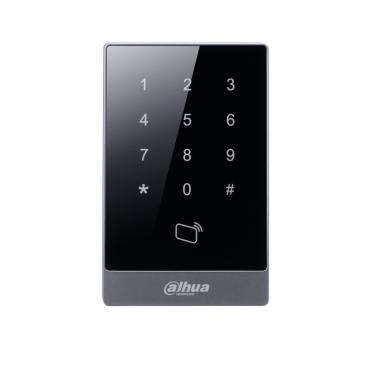

>Sensitive touch keypad with blue backlight
>Watch dog function ensure device free from halting
>Beep and indicator
>Surface mounted installation
| Model |
ASR1101A/ASR1101A-D |
ASR1001A/ ASR1001A-D |
| System |
| Main Processor |
8 Bit |
| Read |
| Read Format |
13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
| Read Range |
6-8cm (max.) |
| Response time |
<0.1s |
| Function |
| Tamper Alarm |
Yes |
| Interface |
| To Controller |
RS485 |
Wiegand |
| General |
| Keypad |
12Key(0-9,*,#)
Sensitive touch keypad |
| LCD Display |
Blue backlight |
| Beep Tone |
Buzzer |
| Ingress protection |
IP55 |
| Power Supply |
9-15VDC/100mA |
| Working Environment |
-30℃-+60℃ |
| Working Humidity |
≤95% |
| Dimension(W×D×H) |
135mm*86mm*12mm |
| Weight |
0.25Kg |
