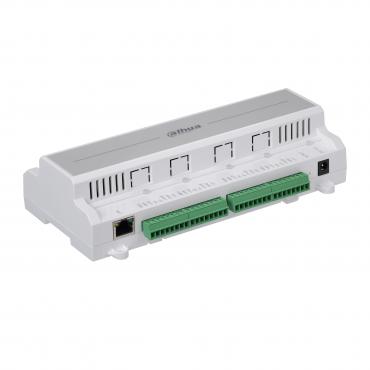

ASC1204B
DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

Four Door Access Controller

>Support 100,000 valid cards & 300,000 records
>Support multiple cards
>Support card, password, fingerprint and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers(2/4 door)
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-door interlock, multi-card open
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
>Surface mounted installation

Model ASC1204B
System
Main Processor 32 Bit
Memory 16M(32M External)
Input/Output Ports
Input Inputs x 9 ( door sensor x 4, exit button x 4, alarm x 1)
Output Relay x 5(door lock x 4, alarm x 1 )
Reader Reader x 4
Capacity
Cardholders/Events 100,000/150,000
Function
User Management General, VIP, Guest, Patrol, Black list, Force
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)/RS485
To Reader Wiegand/ RS485
General
RTC Yes
Power Supply 9-15DC/500mA
Working Environment -30℃-+60℃
Working Humidity ≤95%
Dimension(W×D×H) 210*98*51mm
Weight 0.5Kg
