>Support 100,000 valid cards & 300,000 records
>Support multiple cards
>Support card, password, fingerprint and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers(1/2 door)
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-door interlock, multi-card open
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
>Surface mounted installation

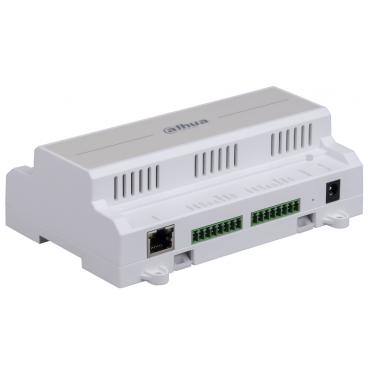

| Model |
ASC1202B |
| System |
| Main Processor |
32 Bit |
| Memory |
16M(32M External) |
| Input/Output Ports |
| Input |
Inputs x 6 ( door sensor x 2, exit button x 2, alarm x 2) |
| Output |
Relay x 4(door lock x 2, alarm x 2 ) |
| Reader |
Reader x 2 |
| Capacity |
| Cardholders/Events |
100,000/150,000 |
| Function |
| User Management |
General, VIP, Guest, Patrol, Black list, Force |
| Alarm Function |
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Schedule Setting |
Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
| Interface |
| To PC |
RJ45(10/100M)/RS485 |
| To Reader |
Wiegand/ RS485 |
| General |
| RTC |
Yes |
| Power Supply |
9-15DC/500mA |
| Working Environment |
-30℃-+60℃ |
| Working Humidity |
≤95% |
| Dimension(W×D×H) |
156*98*51 mm |
| Weight |
0.5Kg |
