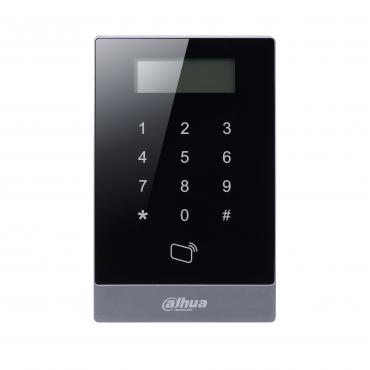

ASI1201A/ASI1201A-D

DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

RFID Standalone

>Touch keyboard and LCD display
>Support 30,000 valid cards & 150,000 records
>Support multiple cards(default IC card) (“-D” means ID EM card)
>Support card, password and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-card open
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
>Surface mounted installation

Model ASI1201A/ASI1201A-D
System
Main Processor 32 Bit
Memory 16M
Input/Output Ports
Input Door sensor x 1, Exit button x 1, Alarm input x 2
Output Relay x 3 (Door lock, Bell, Alarm)
Reader Reader x 1
Read Format 13.56MHz(Mifare)/125KHz(“-D” EM, Optional)
Read Range 3-8cm (max.)
Capacity
Cardholders/Events 30,000/150,000
Function
ID Setting Using friendly CMS or command by keypad
User Management General, VIP, Guest, Patrol, Black list, Force
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)/RS485
To Reader Wiegand/ RS485
General
RTC Yes
Beep Tone Buzzer
LCD Display Sensitive touch keypad with blue backlight
Ingress protection IP55
Power Supply 9-15DC/130mA
Working Environment -30℃-+60℃
Working Humidity ≤95%
Dimension(W×D×H) 150mm*96mm *16mm
Weight 0.35Kg
