VTH1660CH
DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

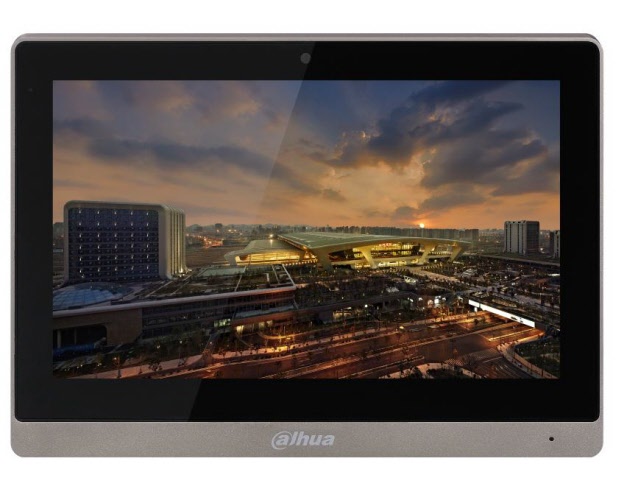

10-inch Color Indoor Monitor

>Displayer: Color 10.2-inch TFT LCD,
>Capacitive touch screen, metal frame
>Support 8 wire alarm input extension or home appliance
>Call among households
>1 channel 10/100Mbps self-adaptive Ethernet
>Support outdoor station and IPC monitor
>Support leave audio and video message
>Support supplied power by network cable
>SD card inside
>Flush mounted



Model DH-VTH1660CH
System Main Processor Built-in microcontroller
Operation System Embedded LINUX operating system
Video compression H.264
Audio Audio Input All-direction microphone
Audio Output Embedded loudspeaker
Bidirectional Talk Support bidirectional talk
Display Size Color 10.2-inch TFT LCD
Alarm Alarm input 8 Channels
  Alarm outpit 1 Channel
Network Ethernet 10 M / 100 Mbps adaptive
network protocol TCP/IP
General Power DC 10~15V or supply directly by Special switching power
Power Consumption Standby ≤1.5W，work≤7W
work environment Temperature: -10℃~+60℃
Humidity: 10~90%RH
Dimensions 260mm×189mm×22.7mm（L*W*T）;
Weight 1.0 Kg；
