>Touch keyboard and LCD display
>Voice prompt
>Support 30,000 valid cards & 150,000 records
>Support multiple cards(default IC card) (“-D” means ID EM card)
>Support card, password, fingerprint and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-card open
>Software attendance
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting

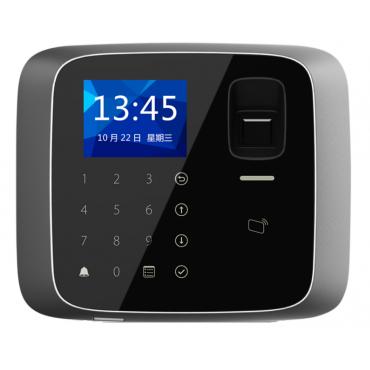

| Model |
ASI1212A/ASI1212A-D |
| System |
| Main Processor |
32 Bit |
| Memory |
16M |
| Input/Output Ports |
| Input |
Door sensor x 1, Exit button x 1, Alarm input x 1 |
| Output |
Relay x 4 (Door lock, Bell, Alarm x 2) |
| Reader |
Reader x 1 |
| Card Read |
| Read Format |
13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
| Read Range |
3-8cm (max.) |
| Response Time |
<0.1s |
| Fingerprint Read |
| Response Time |
≤0.5s |
| Recognition Time |
≤1.5s |
| FAR |
≤0.00004％ |
| FRR |
≤0.15％ |
| Capacity |
| Cardholders/Events |
30,000/150,000 |
| Fingerprint |
4500 |
| Function |
| ID Setting |
Using friendly CMS or command by keypad |
| User Management |
General, VIP, Guest, Patrol, Black list, Force |
| Alarm Function |
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Schedule Setting |
Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
| Interface |
| To PC |
RJ45(10/100M)/RS485 |
| To Reader |
Wiegand/ RS485 |
| Genreal |
| RTC |
Yes |
| Voice Prompt |
Yes |
| Beep Tone |
Buzzer |
| LCD Display |
Sensitive touch keypad with blue backlight |
| Ingress protection |
IP55 |
| Power Supply |
9-15DC/200mA |
| Working Environment |
-5℃-+55℃ |
| Working Humidity |
≤95% |
| Dimension(W×D×H) |
158mm*191mm *32mm |
| Weight |
0.7Kg |
